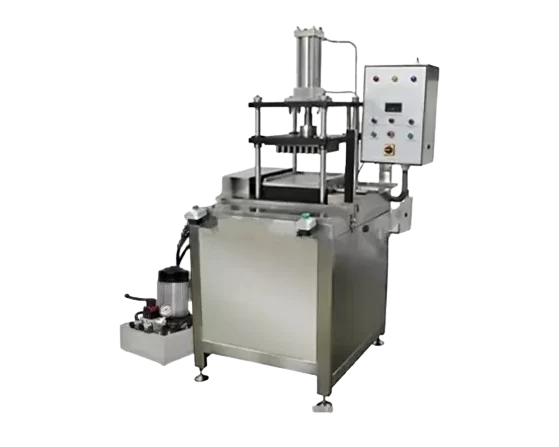

Hydraulic Bakhoor Tablet Pressing Machine


Description :


This versatile tablet press machine boasts high pressure, a wide tablet range, and the ability to create tablets in diverse shapes, catering to the efficient production of small batches and various product types. With centralized mechanical and electrical controls, it ensures user-friendly operation.

Bakhoor Tableting Machine Key Points :


  1. Diverse Tablet Shapes: Capable of producing regular, special-shaped, and ring-shaped tablets to meet varied production needs.
  2. Mechanical-Electrical Integration: All controllers and regulating devices are conveniently centralized on one side, simplifying the overall operation of the machine.
  3. Efficient Rolling Friction: The upper and lower pressing wheels utilize rolling friction, reducing working resistance and power loss.
  4. Pressure Overload Protection: Equipped with a safety unloading device, automatically triggered during overpressure situations, ensuring stability and protecting the machine from potential damage.
  5. Centralized Control Mechanisms: Easy adjustment and control of filling amount, tablet thickness, and rotation speed, all under centralized control for user convenience.
  6. Enclosed Oil-Immersed Worm Gear Drive: Reduces power loss and extends the service life of the worm gear for enhanced efficiency.
  7. Fully-Enclosed Design: The peripheral cover and sealed pressing chamber prevent dust dispersion and oil cross-contamination, maintaining a clean and safe working environment.
  8. Independent Vacuum Cleaner: Efficient dust collection ensures the continuous and normal operation of the machine.
  9. Wide Application: Primarily designed for the pharmaceutical industry, it is also suitable for use in the chemical, food, electronic, plastic, and metallurgical industries.

Available Hydraulic Bakhoor Tablet Pressing Machines

  • No of Cavity: 8 -24 -48
  • Material: Stainless Steel
  • Voltage: 380V, 3Phase

Specification :


Technical Specifications FCT-HB24
Power Required 380-440v/ 3 Ph/ 3.8 kW
Air Required NA
Production Capacity 1 – 2 Cycles Per Min.
Approximate Dimensions (LxWxH Mtrs.) 1.5 x 1 x 2.2
Manpower Required 1
Make Of Electrical Components Delta/ Schneider/ Panasonic
Make Of Pneumatic Components NA
Make Of Electronic Components NA
Max. Die Size (LxWxH mm) 410 x 380 x Variable
Pre Fitted Die Nil
Max. Pressure Capacity 140 Kg Bar

Hydraulic Bakhoor Tablet Pressing Machine in Dubai

Contact us for more information about our solutions and machines in Dubai.
