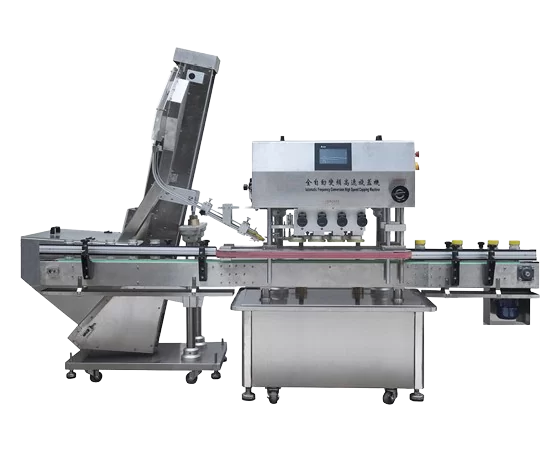

Automatic Linear Capping Machine
Did you find what are you looking for? Inquire Now.
Automatic Linear Capping Machine
This machine is designed for securely fastening threaded caps and is equipped with an Elevator-style Cap sorter, with the option of a Vibratory or Centrifugal Sorting Bowl.
-
- It is suitable for tightening caps on round, square, or oblate bottles.
- The machine can be employed on a standalone rack and is well-suited for cap fastening in high-volume production lines.
- It caters to customers who need to accommodate various bottle specifications, allowing for easy adaptation to different bottle sizes.
Applications of Automatic Linear Capping Machine :
This equipment is designed for securing threaded caps and comes equipped with the option of integrating an Elevator-style Cap sorter, along with the choice of a Vibratory or Centrifugal Sorting Bowl.
- It is designed for tightening caps on round, square, or oblate bottles.
- The machine is adaptable for use on a standalone rack and is well-suited for cap tightening in large-scale customer production lines.
- It caters to customers who need to switch between various bottle specifications, accommodating the replacement of bottles with different sizes.
Technical Parameter :
Items | Parameters |
Production capacity: | ≤5000BPH(According to bottles and caps) |
Bottle: | Φ35-96mm;Height 80-320mm( Be adjusted) |
Cap: | Φ12-80mm; Height 15-40mm(Be adjusted) |
Air pressure | 0.5~0.7 Mpa |
Powder: | 3ph 220V, 50Hz, 2.2Kw |
Weight: | 650kg |
Video
Automatic Linear Capping Machine in Dubai
This machine offer a perfect blend of innovation and reliability, making them ideal for manufacturers in Dubai seeking top-tier Filling, Capping, and Labeling Machines. Elevate your production capabilities with our solutions that guarantee not just efficiency but also the highest standards in quality and performance.
Contact Us For More Information.
