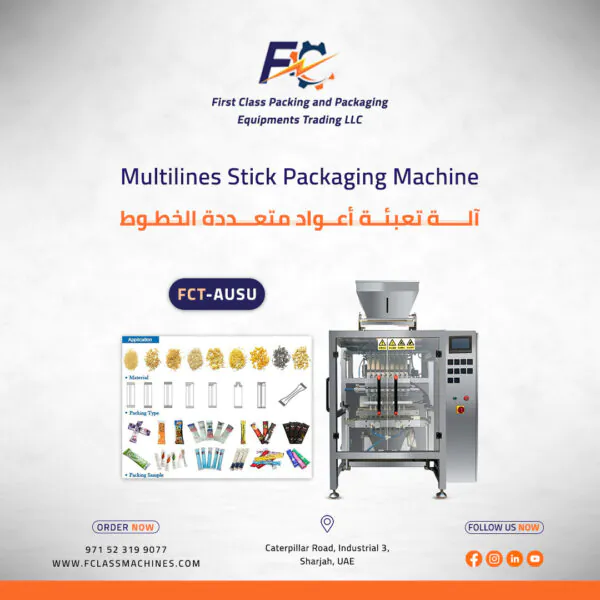

Multi Line Powder Stick Packing Machine
Description :
A stick pack filling machine represents a cutting-edge, highly efficient vertical packaging solution. It’s designed to meet diverse packaging capacity and bag size requirements, offering configurations from 2 to 15 lanes. Compared to similarly capacity multi-lane four-side sealing machines, it boasts a remarkable 30% reduction in packaging material consumption.
Equipped with advanced programmable controllers and a photoelectric control system, this machine seamlessly automates the entire packaging process. From measuring and bag creation to filling, sealing, cutting, printing production data, and final tear-off, it efficiently handles every step. This versatile machine is ideal for packaging various granular items such as sugar, salt, seasoning, coffee, and instant beverages, among others.
Features of the Multi Line Powder Stick Packing Machine :
- Multi-lane packaging capability enables simultaneous production of multiple bags.
- Core functions include automatic film splitting at precise positions, liquid measuring and filling, multi-lane bag formation, sealing, cutting, sensor-based tracking, and capacity counting.
- Additional functionalities encompass emergency stop, automatic stop upon reaching set capacity, capacity counting with zeroing capability, ready bag output, and manual testing of each machine step.
- Stainless steel construction of the contact parts and outer shell ensures suitability for liquid-intensive environments.
- Utilizes high-precision photocell sensors for automatic tracking of eye-mark printing on the film roll, ensuring precise bag cutting at designated positions.
- Equipped with a PLC controller for comprehensive management and control of the entire machine operation process.
Bag Type :
Technical Parameters of the Multi Line Powder Stick Packing Machine:
- Lane Number: 4 Lanes, 6 Lanes, 8 Lanes, 10 Lanes.
- Bag Width: 16-90mm, 16-60mm, 16-45mm, 16-35mm.
- Packing Speed: 30-50 Bags/Min/Lane.
- Cutting Type: Flat Cutting, Zigzag Cutting, Continuous Cutting, Customized Special Shape Cutting.
- Optional device: Date Coder, Air-filling Device, Tear Notch Device.
Specifications of the Multi Line Powder Stick Packing Machine :
Product Code | FCT-ML | FCT-ML | FCT-ML | FCT-ML | FCT-ML |
Number of lanes | 4-lanes | 6-lanes | 8-lanes | 10-lanes | 12-lanes |
Packaging style | Stick pack | ||||
Production Capacity (bags/min) | Max. 50 bags/min per lane (Total speed up to 500 BPM ) | ||||
Bag length (mm) | 50-140 | ||||
Bag width (mm) | 16-35 | ||||
Volume per bag (ml) | 1-20 | ||||
Packaging film Type | heat sealable laminated film | ||||
Film roll outer diameter (mm) | Max. 350 | ||||
Film roll inner diameter (mm) | 70-75 |
Multi Line Powder Stick Packing Machine Packaging Sample :
Multi Line Powder Stick Packing Machine in Dubai
For more information about our stick Packaging solutions, Contact us.
