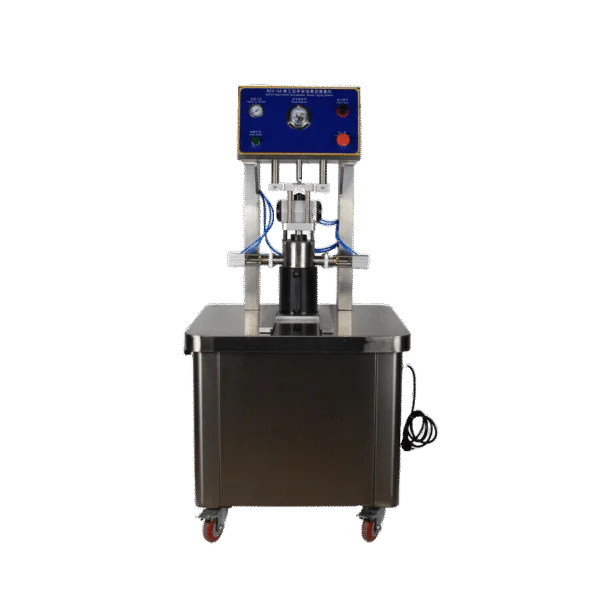

Semi-Automatic Vacuum Glass Bottle Capping Machine



Description :



Explore a realm of precise and effective capping with our Semi-automatic Glass Jar Vacuum Capping Machine. What distinguishes this machine is its built-in vacuum capability. Each jar sealed with this groundbreaking capper enjoys an extended shelf life, thanks to its capacity to create a vacuum-sealed environment internally. This crucial attribute guarantees that the contents are shielded from external oxidation and degradation, thereby maintaining the product’s quality and freshness intact.


Application :



The primary objective of our semi-automatic vacuum glass bottle capping machine is to cater to a diverse array of industries, including the food sector. It is specifically designed for sealing products such as soy sauce, vinegar, fruit juice, sesame sauce, chili sauce, peanut sauce, canned peaches, canned carambola, and more. This machine features a vacuum evacuating function that effectively extends the shelf life of sealed products under normal conditions. By minimizing exposure to external air, it significantly reduces the likelihood of oxidation and deterioration, ensuring product quality and freshness are maintained.


performance characteristics of semi-automatic vacuum glass bottle capping machine :



  1. It utilizes a vacuum pump mechanism, enabling it to achieve exceptionally high vacuum levels.
  2. Both capping torque and vacuum intensity are adjustable to suit specific requirements.
  3. Its distinctive design allows for compatibility with a wide range of bottle cap shapes and sizes, offering convenience and flexibility in adjustment.
  4. The machine incorporates top-quality pneumatic and electrical components from internationally renowned brands, guaranteeing consistent and dependable performance.

Technical Details :



Power 220V 50Hz
Power 1.3KW
Capping  speed 700 bottles/hour
Cap arrange Dia 30-80mm 80-150mm
Bottle  height 50-180mm 120-250mm
Air supply 0.4-0.8Mpa
Air consumption 0.3m3/min
Bottles range Dia 30-80mm 80-150mm
Vacuum -0,08Mpa
Standard export package size  870*900*1450mm
Machine Weight 140KG

Sample :



Semi-Automatic Vacuum Glass Bottle Capping Machine




Semi-Automatic Vacuum Glass Bottle Capping Machine In Dubai
