Semi Automatic Round Bottle Labeling Machine with Coder

Did you find what are you looking for? Inquire Now.

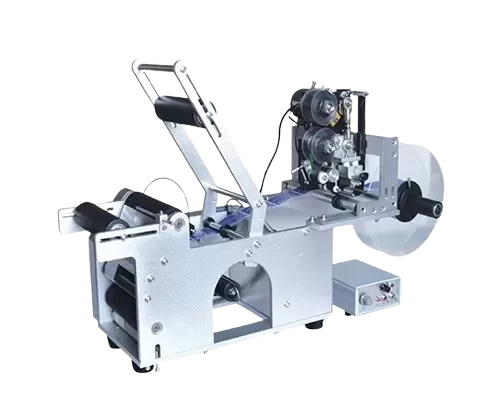

Semi Automatic Round Bottle Labeling Machine with Coder


Description :


The Semi Automatic Round Bottle Labeling Machine with Coder is a versatile solution for labeling household chemicals, food, beverages, pharmaceuticals, and light industry products in round bottles. With its compatibility for various bottle sizes, it excels in small-batch production for standalone label applications.

The Color Ribbon Coder, a compact and semi-automatic device, seamlessly integrates with vertical filling packing machines. Ideal for industries like food, beverage, and medicine, this coder uses a hot stamp ribbon for clear and legible text on diverse packaging materials. Known for its user-friendly operation and easy maintenance, it enhances production efficiency.

Bottle Labeling Machine Features :


  • Experience the epitome of efficiency with a well-structured Bottle Labeling Machine boasting reliability and user-friendly operation, complete with optical detection for precise labeling. Utilizing advanced labeling technology, this machine guarantees accuracy in labeling, accommodating various bottle specifications with remarkable adaptability.
  • Customize label light sensitivity effortlessly—adjustable for different transmittance levels of label backing paper. This feature enables seamless comparison and sensitivity adjustments, ensuring optimal performance with diverse label lengths. The result is a consistent, smooth, and accurate labeling process.
  • Every component, from the rack and feeder to the barrier boom and fastener, is crafted from stainless steel and aluminum. This ensures corrosion resistance, prevents rust, and eliminates any potential for pollution. The use of these materials aligns with GMP environmental requirements, making this machine a reliable and environmentally friendly choice.

Technical Details of our Semi Automatic Round Bottle Labeling Machine with Coder :


    1. Speed: 20 – 40 pcs per minute
      • The Bottle Labeling Machine operates at a speed range of 20 to 40 pieces per minute, ensuring efficient and timely labeling.
    2. Bottle Compatibility:
      • Designed to accommodate bottles with an outer diameter (OD) ranging from 32mm to 150mm.
    3. Label Dimensions:
      • Versatile labeling with a label width of 26mm to 150mm.
      • Adjustable label length within the range of 28mm to 180mm.
    4. Label Roll Specifications:
      • Label roll inner diameter (ID): 76mm.
      • Supports label rolls with a maximum outer diameter (OD) of 300mm.
    5. Power Supply:
      • Operates on a power supply of 220V/110V at 50/60Hz, providing flexibility in usage.
    6. Compact Design:
      • Compact dimensions measuring 643546cm make it a space-efficient solution.



Model FTM-50D
Accuracy +-0.5mm
Speed 20 – 40pcs per minute
Available Bottle OD 32 – 150mm
Label Width 26 – 150mm
Label Length 28 – 180mm
Label Roll ID 76mm
Max. OD of Label Roll 300mm
Power Supply 220/110V 50/60Hz
Dimension 64*35*46cm


Our machine is a reliable and versatile labeling machine suitable for various industries, offering precision, speed, and adaptability to meet diverse packaging requirements.

For more information about Semi Automatic Round Bottle Labeling Machine with Coder in Dubai, Contact us.
