Automatic Digital Liquid Filling Machine
Did you find what are you looking for? Inquire Now.
Automatic Digital Liquid Filling Machine
Description :

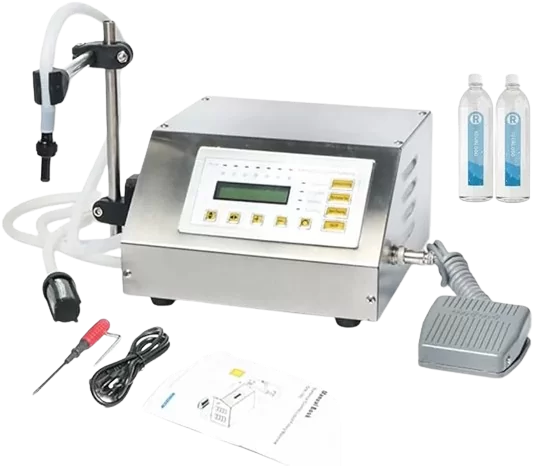

Automatic Digital Liquid Filling Machine – a versatile solution offering both foot pedal control and automatic filling modes. With a filling range from 2 to 3500ml, this machine operates on a wide voltage range (AC 110-220V) and consumes just 30W of power. Featuring a high-end LED display, stainless steel construction meeting GMP requirements, and a powerful 3500 ml/min Diaphragm Pump, it’s designed for precision and efficiency.
Liquid Filler Key Points :
- Dual Filling Modes: Foot pedal control for manual precision or automatic filling for hands-free operation.
- Wide Filling Range: Suitable for volumes ranging from 2 to 3500ml, accommodating diverse liquid products.
- Power and Voltage: Low power consumption at 30W with a wide voltage range (AC 110-220V) for versatility.
- Advanced Features: LED display, waterproof settings, and six groups of data storage for convenience.
- Diaphragm Pump: High-flow internal return diaphragm pump with a maximum flow rate of 3500ml/min.
- Precision and Stability: Filling error ≤±0.5%, microcomputer-controlled filling time, and adjustable pump motor speed.
- Application: Ideal for beverages, wine, vinegar, soy sauce, liquid skincare products, and perfumes.
- Limitations: Not suitable for corrosive or highly viscous liquids thicker than edible oil.
- Portability: Lightweight at 4 kg, easily managed by one person for on-the-go use.
- Safety Features: Automatic power cutoff during prolonged operation without a load, ensuring machine protection and stability.
Specification :
Specification | Details |
Filling Accuracy | ±1% |
Filling Speed | 3.2L/min |
Certification | CE |
Warranty of Core Components | 1 Year |
Max Suck Distance | 2m |
Filling Volumes Range | 2ml-unlimited volume |
Weight | 3KG |
Dimension(L*W*H) | 350*260*140mm |
Function | Filling |
Automatic Digital Liquid Filling Machine in Dubai.
Contact us for more information about our filling solutions.
