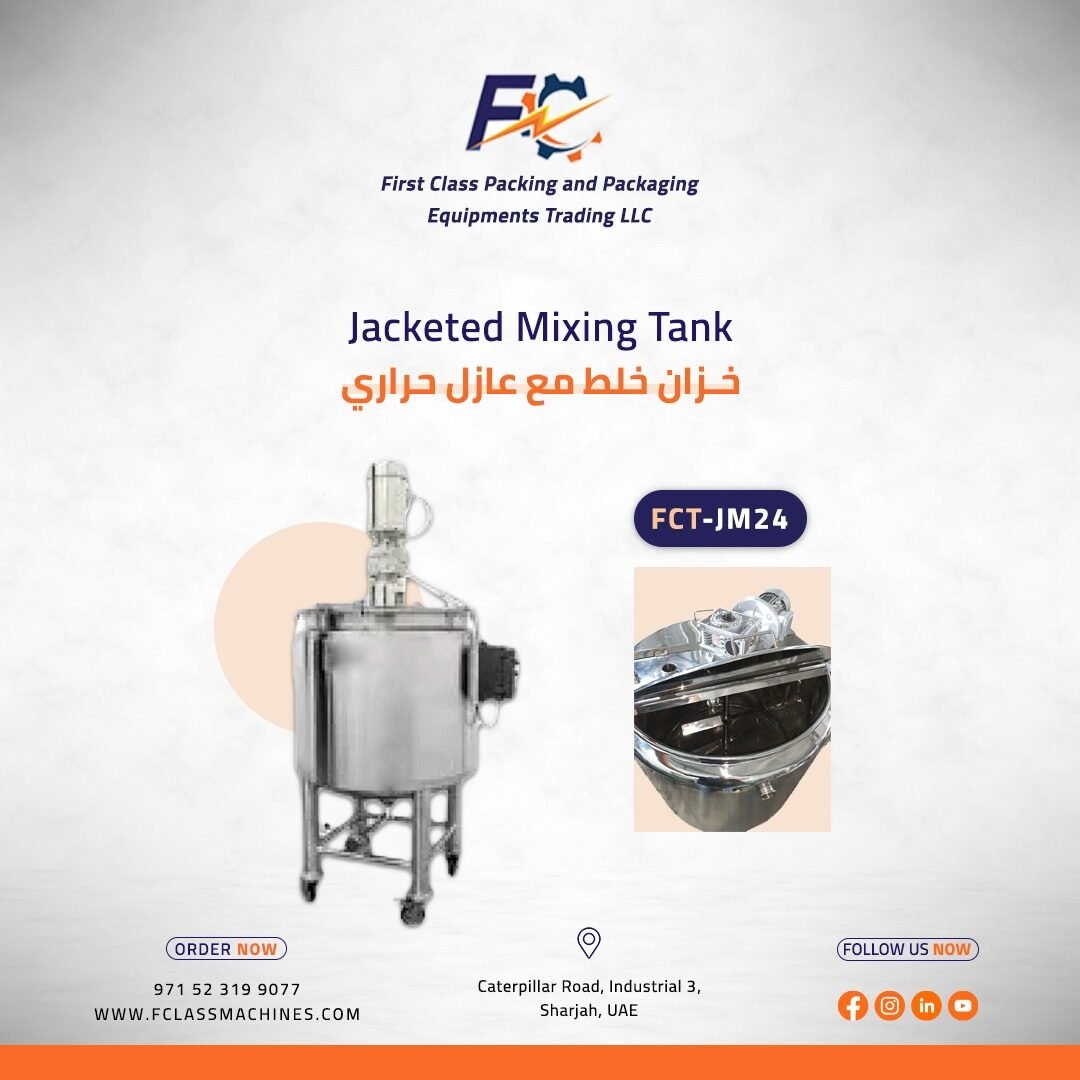

Jacketed Mixing Tank

Did you find what are you looking for? Inquire Now.

Jacketed Mixing Tank


Description :


The double-jacketed mixing vessel, complete with a jacketed steam boiler, is employed for the blending of liquid and slightly solid materials. The assembly features a series of paddle-type blades, with either pitched or flat blades of suitable shapes. Within the mixer, two consecutive blades move in opposite directions, fostering a laminar thinning effect on the material and ensuring consistent mixing.

The paddle-type blades are mounted on scraping arms and welded to a hollow shaft, each having an independent drive. A bottom support, referred to as a piyot, is provided to stabilize the shaft during rotation. The paddles affixed to the internal shaft create relative movement of the material. To facilitate material discharge, various types of valves can be incorporated based on user requirements.

Application of Stainless Steel Jacketed Mixing Tank :


  • Manufacture of Herbal Shampoo
  • Production of Liquid Soap
  • Hand Wash Production
  • Sanitizer Production
  • Dish Wash Manufacturing
  • Laundry Soap Production
  • Manufacturing of Emulsions Liquid Gel/Ultrasound Gel
  • Production Manufacturing of Syrups, Suspensions, and Oral Liquid Gels
  • Production of Paints, Coatings & Chemicals
Jacketed Mixing Tank in Dubai

For more information about our Mixing solutions, Contact us.

Specifications :


Specifications Details
Workable Volume 30 Gallons
Heating Oil Jacket Insulated stainless cladding, vented to atmosphere, holds NO pressure
Recommended Heating Oil Level 14-15 Gallons, visible through glass sight glass
Temperature Capability Up to 209°F / 98°C (Notify Sales Rep. for boiling temperatures)
Immersion Heater 5KW Screw-Plug Immersion heater with adjustable thermostat (208v, 3 phase)
Estimated Boil Time Approximately 2 hours for full volume of 30-gallon water
Temperature Gauge Threaded in sanitary thermowell, no direct contact with product
Vessel Pressure No pressure
Dimensions 26″ L x 26″ W x 69″ H
Outlet 1.5″ tri-clamp outlet with sanitary butterfly valve
Top Ports 2 x 1.5″ tri-clamp ports
Lid Spring-loaded hinged lid with locking mechanism, vertical holding position
Interior Finish Electropolished to 0.8µm (RA32 uin, #4 food-grade finish)
Motors 1 HP stainless Lesson motor with 5:1 speed reduction gearbox, integrated Variable frequency speed control (0 – 350 RPM)
Power Options Low Voltage 208/230V: (1) 208/230V, 3PH, FLA – 28A – Pre-Wired
High Voltage 480V: (1) 120V, 1PH Plug, [4.2 A] + (1) 460/480V, 3PH Plug, [12.4 A] – Pre-Wired
