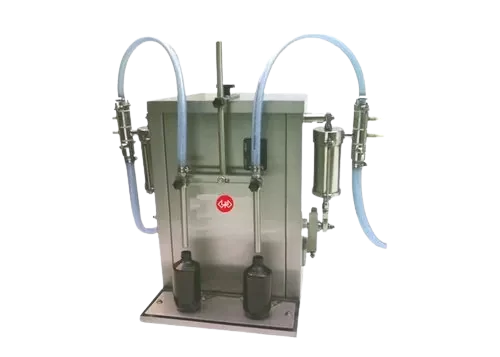

Semi Auto Piston Type Oil Lubricant Filling Machine‏

Name: Semi Auto Piston Type Oil Lubricant Filling Machine‏
Brand: First Class Packing & Packaging Equipment TR L L C S.P
SKU: 649
Availability: InStock
Rating: 5 (1 reviews)

Did you find what are you looking for? Inquire Now.

Semi Auto Piston Type Oil Lubricant Filling Machine

‏

Specifications for Semi Auto Piston Type Oil Lubricant Filling Machine‏ :

Output	Utilizes cubage piston filling, with a capacity of 400-500 bottles per hour (based on 2 heads at a speed of 5 liters per bottle).
Filling Precision	Precision standard of ≤0.5% (calculated for 5L); actual filling precision can achieve ≤0.3%.
Viscosity Range	Suitable for liquids with viscosities ranging from 0 to 2500 centipoises.
PLC Control	Equipped with a PLC (Programmable Logic Controller) manufactured in Japan for efficient and reliable control.
Leakage Prevention	Features a patented leakage prevention device at the filling head.
Filling Heads	Includes 2 filling heads for versatile applications.
Power Supply	Operates on 380/220V power, consuming 90 watts.
Air Resources	Requires air resources of ≥0.5MPa and 0.3 m³/min.
Bottle Compatibility	Suitable for filling round, square, or specially designed bottles.
Bottle Size	Accommodates bottles ranging from 200 ml to 10 liters.
Machine Dimensions	The filling machine has dimensions of 800ｘ700ｘ1800 mm.
Machine Weight	Weighs 200 kg.
