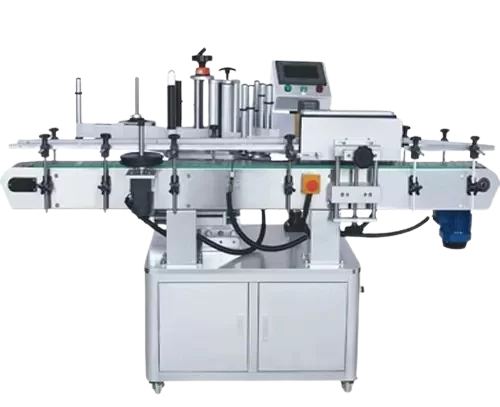

Vertical Round Bottle Labeling Machine



Description :

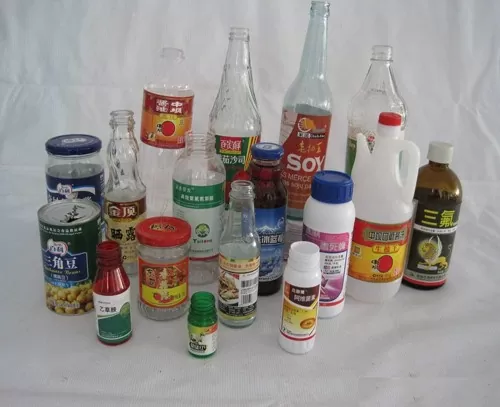

Our Automatic Round Bottle Labeling Machine, also known as a vertical labeling machine, is specifically designed for labeling a variety of round bottles. It stands out as one of the most user-friendly machines in the industry. This Automatic Sticker Labeling Machine is adept at full or partial wrap-around labeling on round containers of different sizes, achieving labeling speeds of up to 150 containers per minute, depending on product and label dimensions.

The automatic model is equipped with a roller spacing device, eliminating the need for change parts and ensuring a seamless operation. Manufactured with precision and sturdiness, the bottle sticker labeling machine features a comprehensive system, including a product transmission system, label dispenser unit, wrapping unit, programmable logic control panel, electric panel, and other advanced components to optimize efficiency in the production process. Safety is a top priority, with all moving parts securely covered.

The conveying system is easily adjustable to accommodate various product requirements, featuring a robust AC variable drive that provides the necessary torque during operation. An innovative motorized system guarantees a uniform distance between products. The machine’s components are sourced from high-quality manufacturers, ensuring durability and minimal maintenance, making it a reliable choice for your labeling needs.


Advantages of Vertical Round Bottle Labeling Machine :



  1. Stability and Adaptability:
    • The Vertical Round Bottle Labeling Machine boasts Siemens PLC control and is driven by a Panasonic servo motor, ensuring stable operation and precise labeling. Its high performance and efficiency make it a reliable choice.
  2. Ease of Operation:
    • The user-friendly touch screen supports multiple languages, including English, facilitating easy operation. It seamlessly integrates with other machines in a production packaging line.
  3. High Precision and Wide Application Range:
    • Achieving accuracy within +-0.5-1mm, the machine accommodates a broad spectrum of bottle dimensions. It is suitable for bottle diameters ranging from 25mm to 120mm and bottle heights from 25mm to 300mm. Customization options include heights of 10mm-150mm and lengths of 15mm-300mm.
  4. High-Speed Performance:
    • With a maximum speed of 150 bottles per minute, the machine’s efficiency is evident, dependent on label and bottle size.
  5. Compliance with European Standards:
    • The labeling machine is meticulously crafted in accordance with CE standards, ensuring it meets the quality and safety criteria expected in Europe.

PARAMETER DATA :



Suitable label length (mm): 20mm ~ 314mm
Applicable Label width (backing paper width / mm): 15mm ~ 150mm
Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ100mm , Height: 25mm ~ 230mm
Applicable standard roll diameter (mm): φ280mm
Applicable standard roll diameter (mm): φ76mm
Labeling accuracy (mm): ± 1mm
The standard speed (m / min): Servo: 5 ~ 25m/min, Stepping: 5 ~ 19m/min
Labeling speed (pcs / min): Stepping: 30 ~ 80pcs/min (with the bottle and label size) , Servo: 40 ~ 120pcs/min
Conveyor speed (m / min): 5 ~ 25m/min
Weight (kg): about 185kg
Frequency (HZ) 50HZ
Voltage (V): 220V
Power (W): 530W (traction stepper) , 980W (traction servo)
Device dimensions (mm) (L × W × H): 1950mm × 1100mm × 1300mm

Vertical Round Bottle Labeling Machine in Dubai

For mor information about the technology and pricing, Contact us.
